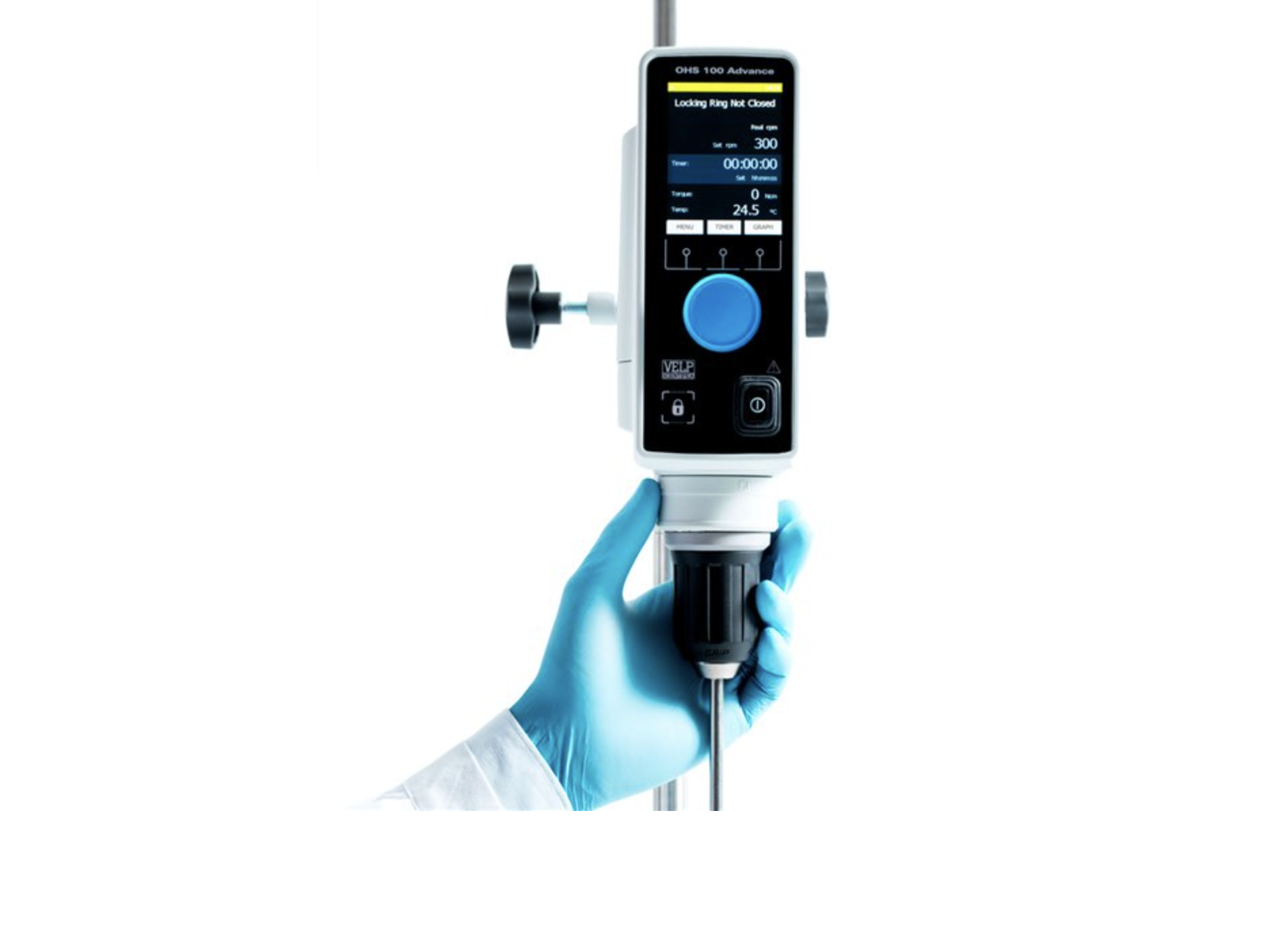

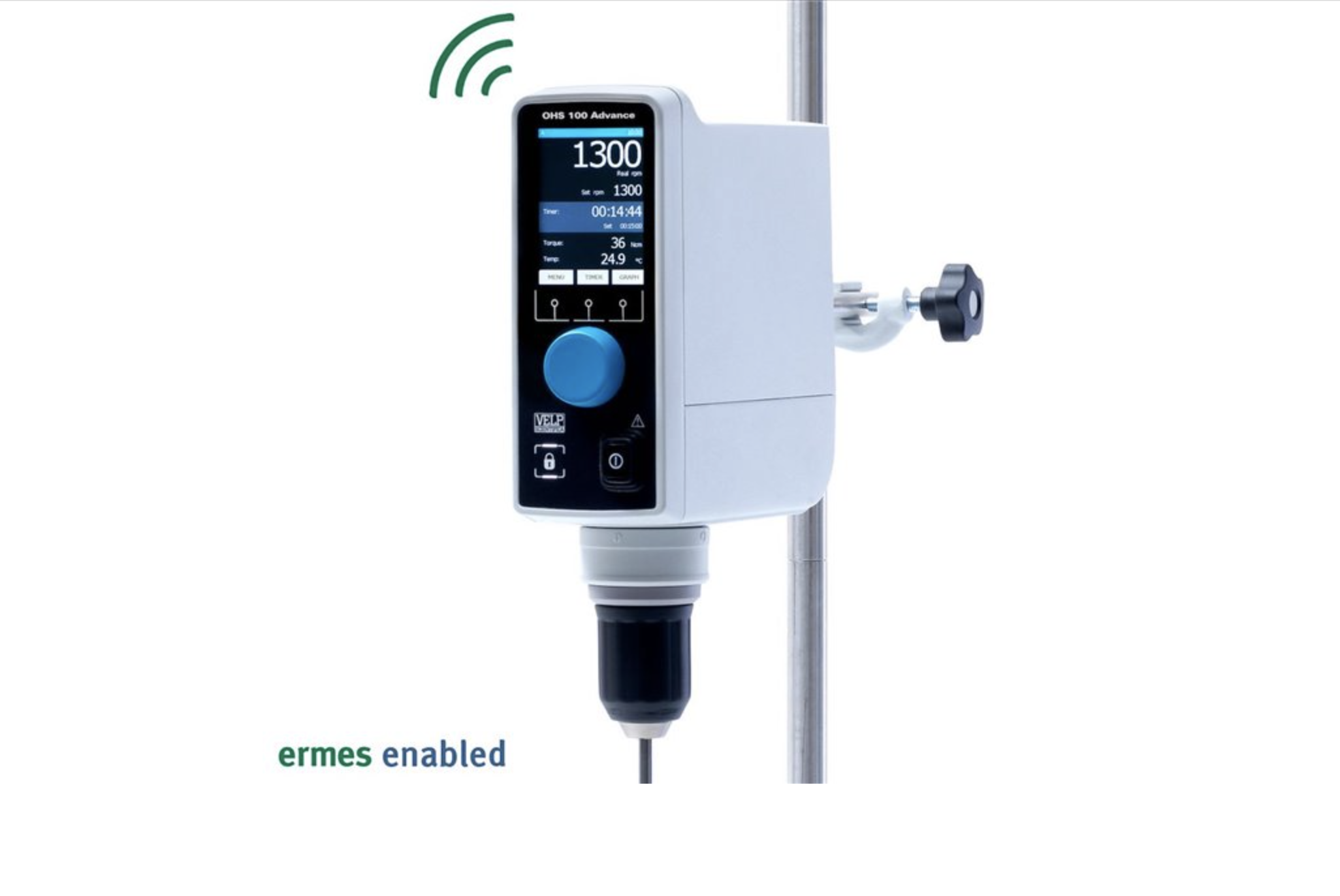

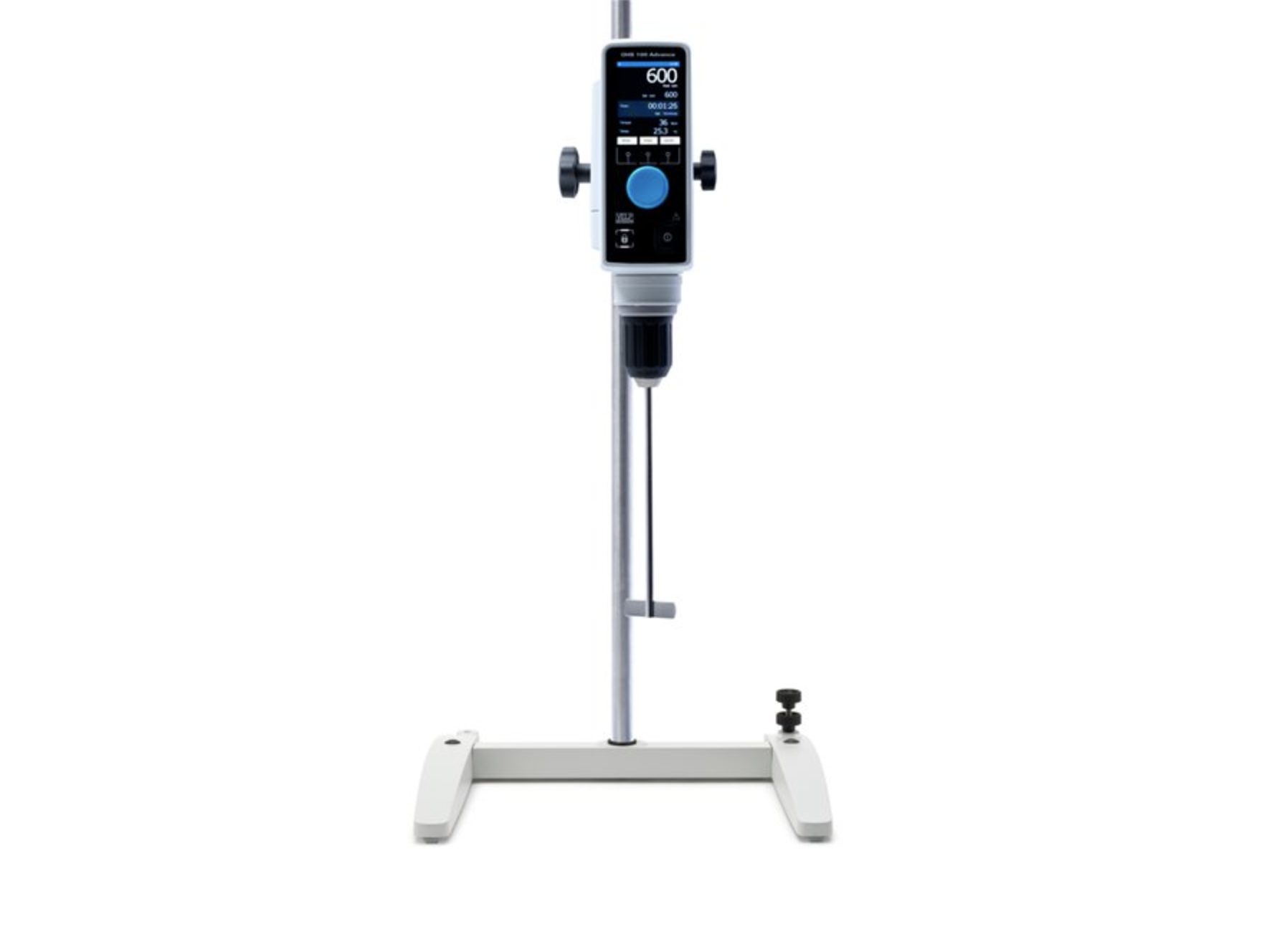

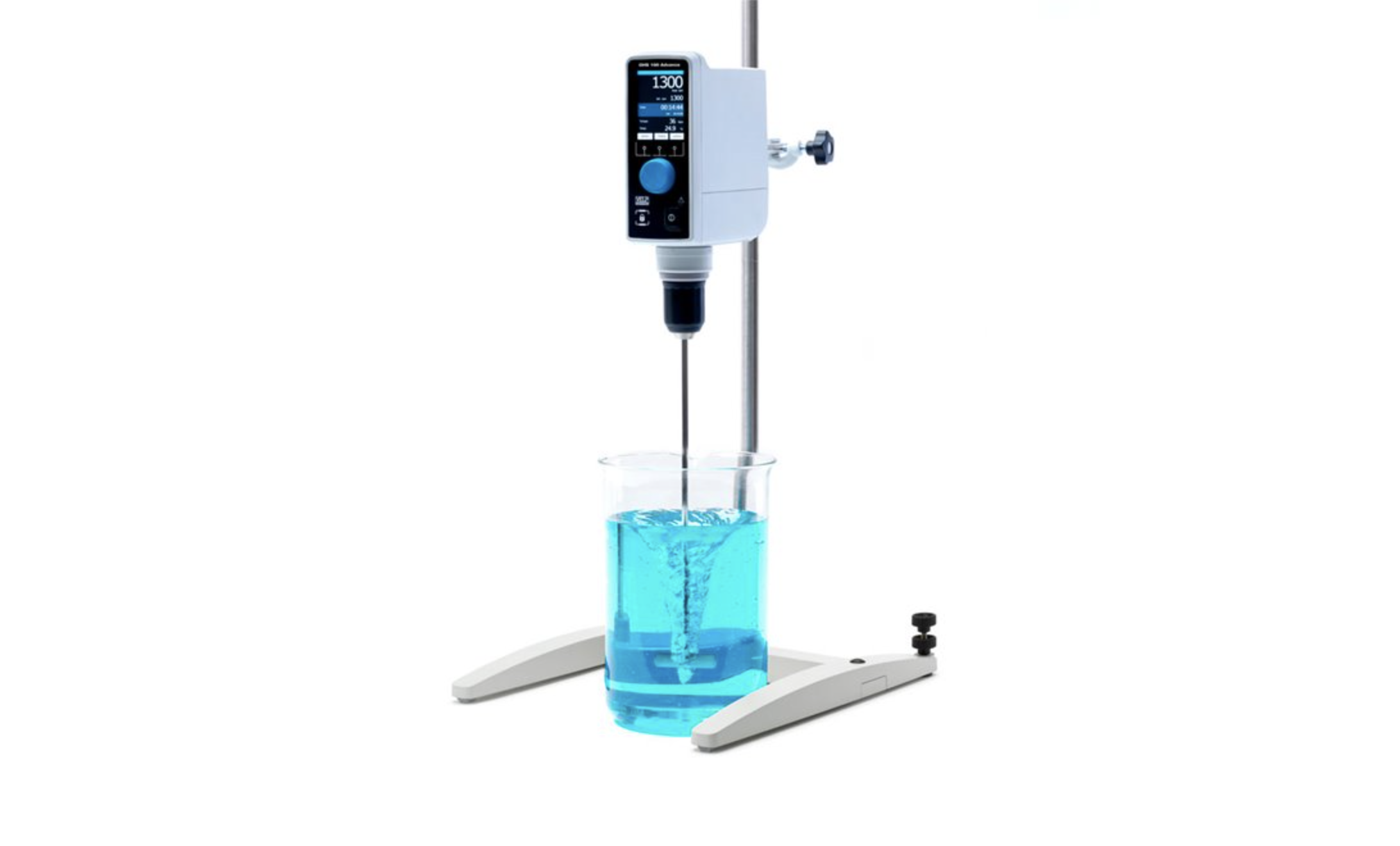

OHS200 Advance Overhead Stirrer
Description;
*OHS 200 Advance is the VELP high-end overhead stirrer designed to guarantee the highest safety standards.
*The resistant sealed housing and the IP 54 Protection Rating guarantee durability even in the most aggressive environments.
*Integrated overload, overtemperature, and overcurrent safety alarms will preserve the performance over time by stopping the stirring
*Safe start and stop knob operation and lock key avoid unintended start up and changes of the working conditions.
*Integrated vibration sensor with different levels of sensitivity will stop the operation and inform you to be sure that your OHS is stable and properly fixed.
Technical Data;
| Display | 3,5" Graphic TFT Display |
| User Interface | Digital |
| Motor | Brushless DC |
| Stirring Volume (H2O) | Up to 100 L |
| Speed Gears | 2 |
| Max Torque | 200 Ncm |
| Stirring Speed Range | 6 – 400 rpm 30 – 2000 rpm |
| Speed Accuracy | 1 rpm |
| Speed Control | Digital |
| Max Viscosity | 100.000 mPa*s |
| Torque Compensation | SpeedServo |
| Chuck Range | Ø from 1 to 13 mm |
| Shaft Diameter Pass-Through | Up to 8.5 mm |
| Safety Vibration Sensor | Yes |
| Timer | Yes |
| Method Setting | Yes |
| Lock Of The Instrument | Yes |
| External Probe Connection | Pt 100 |
| Temperature Measuring Range | -200 to 550 °C |
| Temperature Resolution | 0.1 °C |
| Interfaces | USB/Wi-Fi |
| Dimensions (WxHxD) | 90x315x235 mm |
| Weight | 4,6 kg |
| Protection Class DIN EN 60529 | IP 54 |
